Classification of storage warehouse shelves

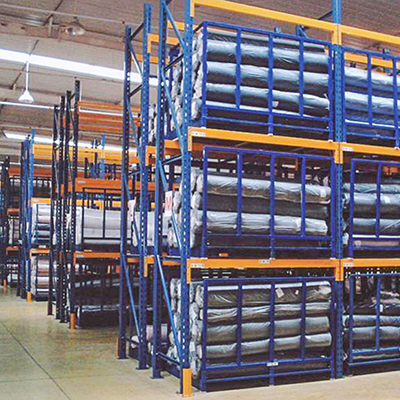

Heavy shelf

Heavy-duty racks are a kind of racks that are commonly used, with each layer bearing more than 500Kg, and the name is derived from this. It has good picking efficiency and stores heavier items, but the storage density is low. Heavy-duty racks are also called pallet racks, which have the characteristics of heavy load-bearing, wide range of high adaptability, mechanical access and high efficiency of selection, but the space utilization rate is average. It is widely used in manufacturing, third-party logistics, distribution centers and other fields. It is not only suitable for multi-variety and small-batch items, but also for small-variety and large-batch items. This type of shelf is most used in high-rise warehouses and ultra-high-rise warehouses

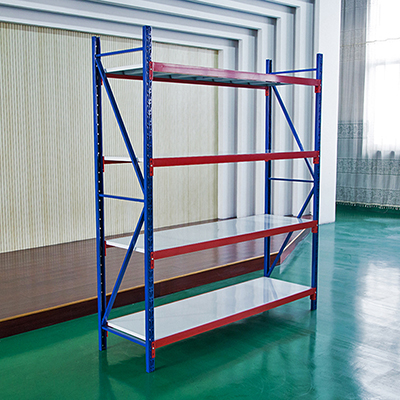

Light shelf

Light shelf is a very economical, practical and convenient warehouse shelf. Because of its light load, it is often called light shelf. The shelf is composed of three components: column pieces, beams, and laminates. The light-duty shelf adopts a screw-less combined design as a whole, which is convenient and quick to install and disassemble. It is suitable for storing some light and small items, and it is a kind of shelf rack. The structure of the light-duty shelf is the same as that of the medium-sized shelf. It can be disassembled and assembled automatically. The height of the layer can be adjusted freely at a distance of 5cm. However, the material specifications are relatively small and the carrying capacity is relatively small. The price of this kind of light-duty shelf is relatively economical, and the structure is relatively universal. The shelf must be stable and reliable, and within a span of 1500cm, it can carry 100-500kg. The surface is treated with plastic spraying, which is beautiful and clean.　Suitable for storage of light and medium-sized items and manual access occasions.

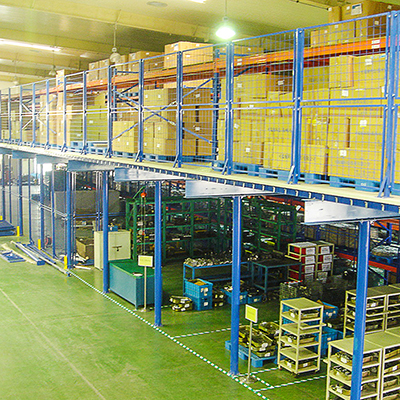

Attic shelf

Attic racking systems, usually use medium-sized or heavy-duty racks as the main support plus floor panels (decide which rack to choose according to the total load weight of the rack unit). Floor panels usually use cold rolled steel floor slabs and pattern steel floor slabs. Or steel grille floor.

The loft type racking system is to build an intermediate loft on the existing work site or shelf to increase the storage space. Many kinds of small batches of goods, manual access to goods. The goods are usually sent to the second and third floors by forklifts, hydraulic lifts or freight elevators, and then sent to a certain location by light trolleys or hydraulic pallet trucks.
