What are the characteristics of combined shelves?

The modular rack plug-in combination does not require screws and welding, and it is very convenient to assemble, fully utilize the space area, and improve the storage capacity. The combination shelf rely on beams and columns to connect with columns, and are equipped with safety pins, barriers, foot guards and other accessories to ensure safety and reliability. It has the advantages of simple and beautiful overall, high safety factor, fast access speed, space saving, and improved storage capacity. It is suitable for storing all kinds of goods, especially suitable for the operation and use of forklifts and stackers. It is a shelf widely used by many enterprises.

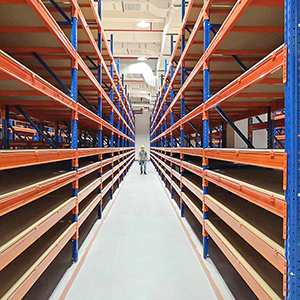

1) Medium-sized shelf: it is made up of column pieces (select the size according to the carrying capacity), beams (such as square beams, stepped beams), laminates (planks, steel plates), and span beams (when the shelf is too wide, the choice of planks for the laminates must be considered ), sealing plate (separate side sealing plate, back sealing plate, wood board, wire mesh) and other combinations. This type of shelf is mainly used for goods with a layer weight of less than 500KG, such as cartons, spare parts, etc.

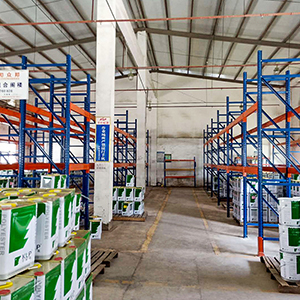

(2) Cross-beam rack: It is composed of columns (select the size according to the carrying capacity), cross beams (square beams, enclosing beams, and holding beams), and span beams (depending on the specifications of the pallet at this time). Depending on the situation, laminates, foot guards, guardrails, etc. may also be used. This kind of shelf is mainly used for storage in the form of card board, which has the characteristics of strong selectivity and first-in-first-out.

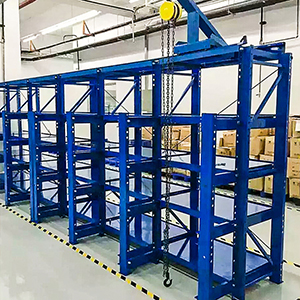

(3) Mould frame: It is composed of column piece (channel steel), drawer plate (steel plate), bracket (angle iron), chute, bearing, etc. In addition, it can be equipped with cranes, hoists, etc. according to needs. Such shelves are mainly used to store various molds, and are often divided into drawer mold racks, full-open mold racks, and retractable mold racks.

Combined shelves are widely used, easy to install and disassemble, flexible to use, and beautiful in appearance. The trend of gradually replacing welded shelves is already unstoppable.
