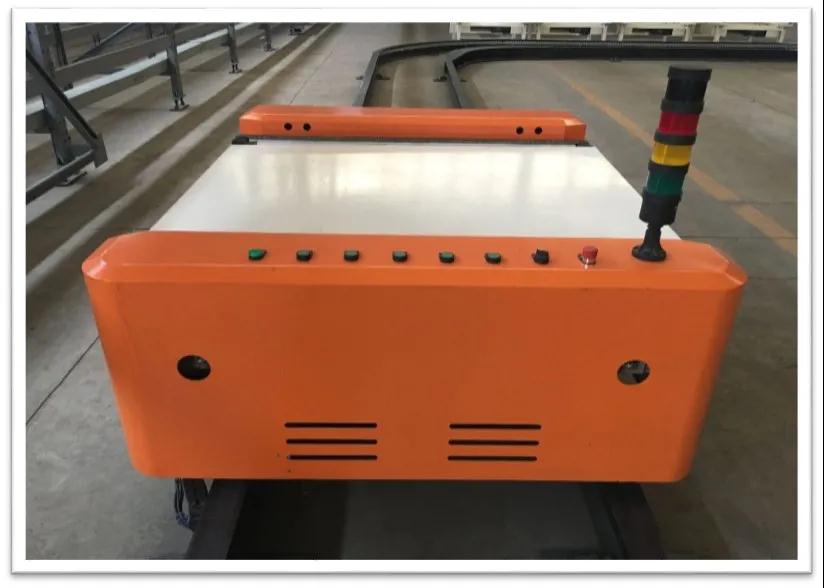

RGV track guided vehicle

RGV trolley can be used in warehouses with various high-density storage methods. The trolley channel can be designed with any length, which can increase the storage capacity of the entire warehouse, and there is no need for forklifts to drive into the roadway during operation, making it more safe. Reuse the advantage of forklifts that do not need to enter the roadway, and cooperate with the rapid operation of the trolley in the roadway to effectively improve the operating efficiency of the warehouse.

Rail guided vehicle-RGV

RGV (railed shuttle car), it can be very convenient to realize automatic connection with other logistics systems, such as outbound/inbound stations, various buffer stations, conveyors, elevators and robots, etc., to transport materials according to the plan. In addition, it requires no human operation and runs fast. As a result, the workload of warehouse managers is significantly reduced, and labor productivity is improved. At the same time, the application of shuttles can make the logistics system very simple.

RGV's exercise method

RGV trolleys are divided into two types according to the movement mode, one is a circular path, the other is a linear reciprocating type, which is mainly used in various high-density storage warehouses, which can increase the storage capacity of the entire warehouse.

Features of RGV

①Acceleration and movement speed are relatively fast, suitable for transporting heavy workpieces;

②Because the guide rail is fixed, the walking is stable and the parking position is more accurate;

③Simple control system, good reliability, low manufacturing cost, easy to popularize and apply;

④The walking route is inconvenient to change, and the turning angle should not be too small;

⑤ The noise is large, which affects the operators to monitor the processing conditions and protect their own safety.

RGV control method

Divided into manual and automatic modes

Manual mode: The manual mode is to control the car forward or backward, or to raise and lower by electric power. Rely on pressing and holding the button of the remote control to realize every action of the car.

Automatic mode: Automatically, the trolley automatically completes a complete action by pressing the button of warehousing or warehousing. Its working mode is divided into two modes: first-in, first-out and last-in, first-out.
