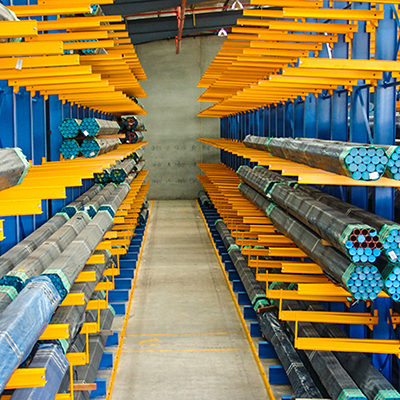

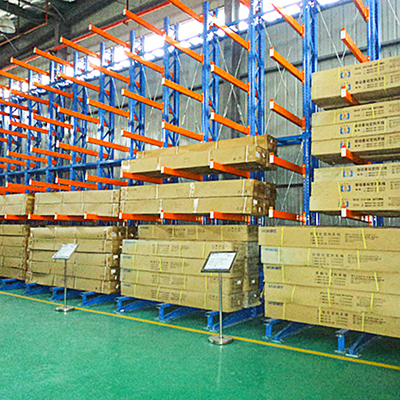

Cantilever racks are not commonly used types of racks, but are dedicated racks. They use special profile columns and high-strength cantilevers. They are only suitable for storing various long materials, ring materials, plates and irregular materials. The forward cantilever can be single-sided or double-sided. It has the characteristics of light structure and good load capacity. The single arm can load up to 1000kg. The specially reinforced column structure can withstand the pressure of 2000~3000kg. So what are the characteristics of the cantilever shelf? Let's introduce them one by one below:

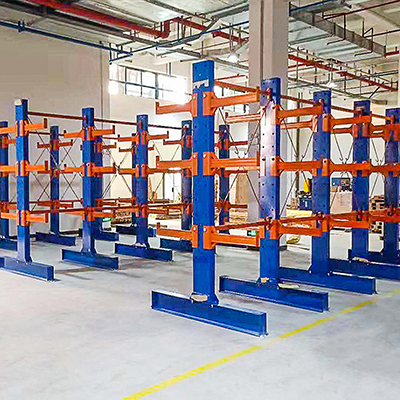

The cantilever is one of the categories. It adopts a special profile column and a high-strength cantilever. It is suitable for storing various long materials, ring materials, plates and irregular materials. The forward cantilever can be single-sided or double-sided. It has the characteristics of light structure and good load capacity. The single arm can load up to 1000kg. The specially reinforced column structure can withstand the pressure of 2000~3000kg. The back pull is designed to increase the overall stability of the shelf, easy to install, and complete accessories. Combined structure, special profile column, designed back pull to increase stability, equipped with high-strength cantilever (arm can be single-sided or double-sided), with light structure, good load capacity, and high space utilization; after adding a shelf, special It is suitable for warehouses with small space and low height. It is easy to manage and has a wide view. Compared with ordinary shelf racks, it has a higher utilization rate. According to the carrying capacity, it can be divided into three types: lightweight, medium and heavy.

1. Use square tube production: according to the corresponding cantilever layer load requirements, first select the square tube that meets the layer load requirements, cut it to the required size, weld the anti-skid guard plate at one end, and weld the U-shaped column connector at the other end. Made.

2. Made of C-shaped steel: According to the corresponding cantilever layer load requirements, the cantilever rack first selects the specifications of the C-shaped steel, and after the selection, two pieces of C-shaped steel are butt welded, and after welding, one end is welded with a non-slip protective plate, and the other end is welded Connect the U-shaped column connector. The column pieces of the cantilever rack are connected by connecting rods, and the connecting rods are generally made of rectangular tubes. In order to increase safety and stability, a flat iron back pull on the connecting rod requires a special puller to tightly fix the column.

   cantilever shelf features:

     1. Only applicable to the storage of long strips or long rolls.

　　2. Handling equipment with a wide fork distance is required, such as a side forklift with a large fork distance.

　　3. The shelf height is limited, generally below 6m.

　　4. The space utilization rate is low, about 35%-50%.

　　 5. Storage type: long strips and long rolls.

　　 6. Basic requirements for structural design

　　 In short, the common use range of cantilever racks is the three points we started to talk about, but it does not fully cover all the use ranges of cantilever racks. Through the analysis of the structure and characteristics of cantilever racks, everyone can fully understand and master the use range of cantilever racks!
