What type of shelves are gravity shelves? What are the structural characteristics of gravity shelves?

As a mature high-density automated storage system, the gravity rack warehouse system has great advantages in the utilization of land resources and storage space, and can maximize the storage of materials per unit space and unit cost. The arrangement of the gravity rack warehouse is indispensable in this regard. Features of Gravity Shelves:

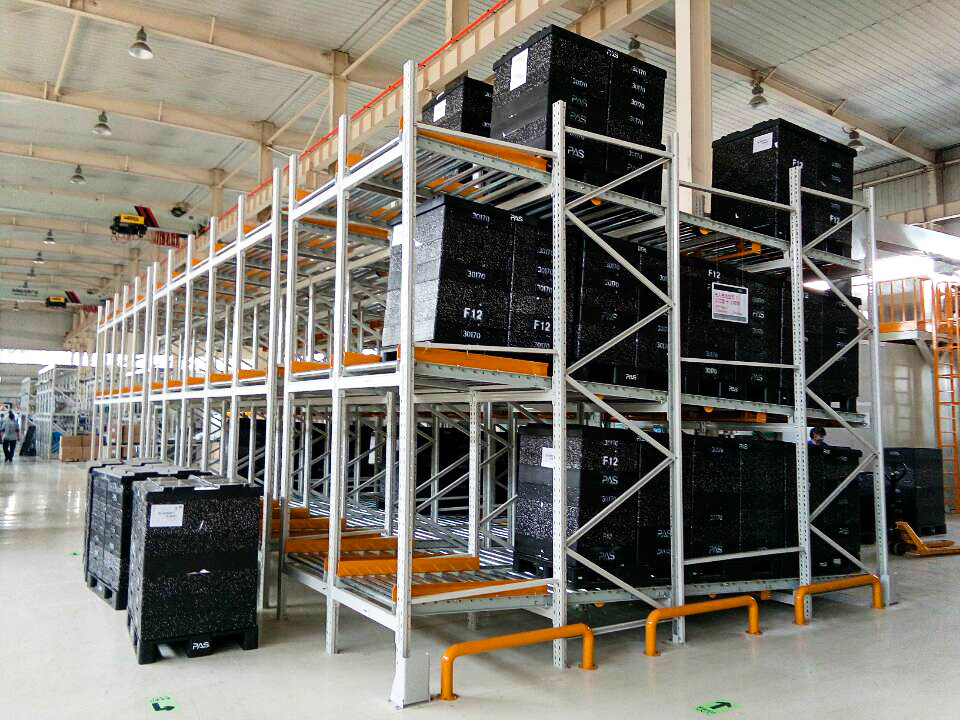

 What is the specific arrangement of the gravity-type racking warehouse? Generally speaking, in the gravity-type racking warehouse, the racks are arranged through and through, and each aisle is a storage channel, and has a certain slope, and the storage equipment The cargo unit automatically loaded from the entrance end of the warehouse can automatically move to the outbound end under the action of its own weight, and it will not be considered as the end until the outbound end of the passage or the stored cargo unit stops, and the dry passage is out of the warehouse. There is a stop device at the end. It is worth noting that when the first cargo unit at the outbound end is taken away, each cargo unit behind it will make up for the outbound end in turn under the action of gravity.

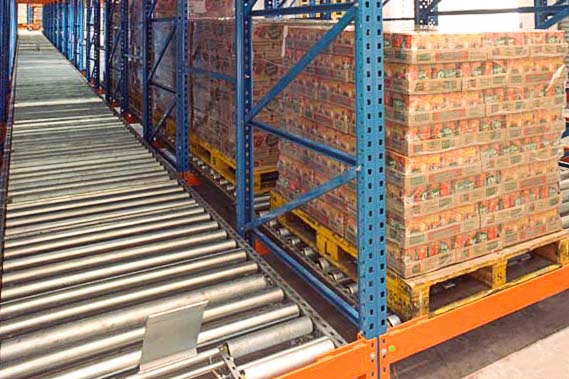

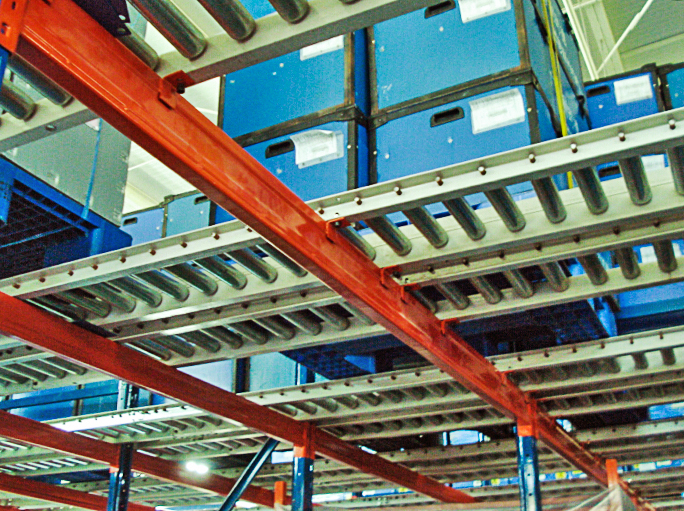

Structurally, in order to ensure the flexibility of this warehouse system, a friction-reducing device must be provided for each inventory channel. For example, adding rollers on the shelves, or storing pallets with rollers, etc. are all achievable.

The above is the arrangement of the gravity rack warehouse. In the warehouse rack design, some of the above arrangements are used to maximize the unit space and unit cost of the warehouse materials.

Gravity shelf structure:

Plug-in combined assembly structure, the column is cold-rolled by an imported continuous punching and rolling mill, the column piece is an assembled structure, the crossbeam and the column are plug-in connection, and it is equipped with a spring with strong self-locking ability The cassette safety pin ensures the safety and reliability of the connection between the beam and the column during the use of the rack and the operation of the forklift.

The shelf height can be adjusted arbitrarily every 75mm pitch, and the load per layer of the unit shelf can reach 4000 kg;

The goods are placed on the pallet, and the storage is carried out by the forklift. The storage is convenient and flexible. It can be equipped with forward-moving battery forklifts, counterbalanced battery forklifts, ordinary forklifts and stackers and other handling equipment;

Steel laminates, wood laminates, net laminates and other laminates can also be laid on the beams;

Gravity shelf application:

Gravity racking system is currently the most commonly used type of storage system, which is widely used in manufacturing, third-party logistics, distribution centers, warehouse supermarkets and other fields. This type of racking is the most used in high-level warehouses, and most of the racks in automated warehouses Use this type of shelf.
