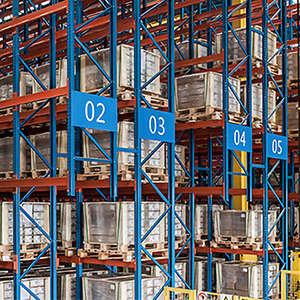

   Usually heavy-duty racks, pallet racks, also commonly known as beam racks, or cargo-position racks

    It is most common in various domestic storage racking systems.

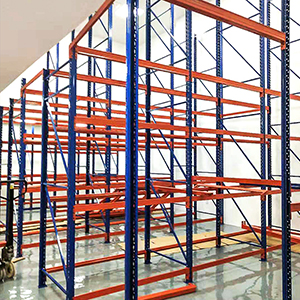

Structural characteristics of weight-type shelves:

    The weight type shelf is made of cold-rolled special-shaped steel, the column is made of 80/90/100×60/70Ω section steel with diamond-shaped holes on the surface; the beam is made of 80×50-100×50-120×50-140×50-160*50 It is made of hanging parts connected by welding beams; the delivery layer can be matched with: laminates, steel pallets, wooden pallets, and plastic pallets.

Generally, pallets are used instead of layers to facilitate forklift handling. The load capacity is 1 ton-5 tons, the surface is electrostatically sprayed, and the water-proof and anti-corrosion ability is stronger. The safety factor is high. The plug-in combination does not require screws and welding. The assembly is very convenient. The size can be customized. Make full use of the space area and improve the storage capacity. It can be designed and manufactured according to customer requirements.

Design Basis:

    First, the unitization work must be carried out, that is, the packaging and weight of the goods must be assembled into trays, and the type, specification, size, and single pallet weight and stack height of the pallet must be determined (the weight of a single pallet is generally within 2000kg), and then This determines the span, depth, and layer spacing of the unit shelf, and determines the height of the shelf according to the effective height of the lower edge of the warehouse roof truss and the maximum fork height of the forklift. The unit shelf span is generally within 4m, the depth is within 1.5m, the shelf height of low and high warehouses is generally within 12m, and the shelf height of super-high warehouses is generally within 30m (such warehouses are basically automated warehouses, and the total shelf height is divided into several sections. Columns within 12m). In such warehouses, most low- and high-level warehouses use forward-moving battery forklifts, counterbalanced battery forklifts, and three-way forklifts for storage and retrieval operations. Electric stackers can also be used when the shelves are short, and stackers are used for ultra-high-level warehouses. Take homework. This kind of racking system has high space utilization, flexible and convenient access, supplemented by computer management or control, and can basically meet the requirements of a modern logistics system.

Scope of application:

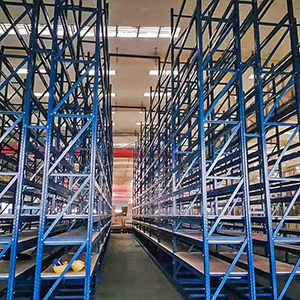

    It is widely used in manufacturing, third-party logistics, distribution centers and other fields. It is not only suitable for multi-variety and small-batch items, but also for small-variety and large-batch items. This type of shelf is most used in high-position warehouses and ultra-high-position warehouses (most of the shelves in automated warehouses use such shelves). In addition, in order to improve the space utilization, the width of the passage can be reduced, and the special pusher can be used to follow the track to make the storage space vertical, which becomes a narrow lane type material rack.
