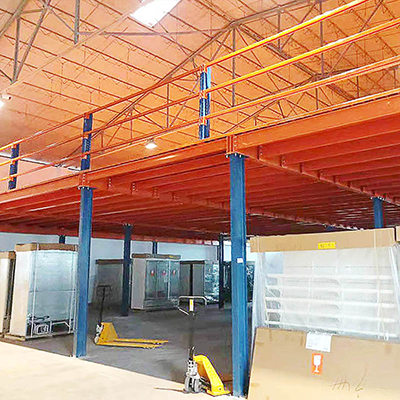

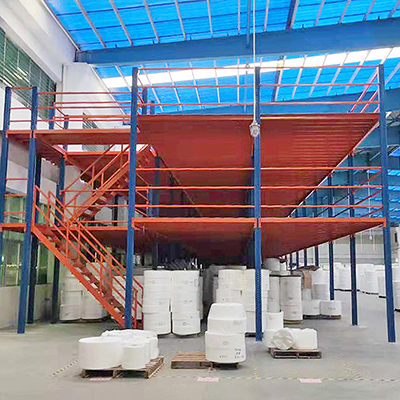

There are many types of shelves, and the loft platform is one of the shelves. The loft platform is supported by shelves and can be designed into multiple floors (usually 2-3 floors). There are stairs, handrails and elevators. This is a simple shelf that makes full use of space. Build an intermediate loft on the existing shelf or work site to increase the storage area. Generally, light foam and small and medium-sized goods or goods with a long storage period can be placed on the attic floor. The goods can be lifted by forklifts, conveyor belts, hoists, electric hoists or lifting platforms. It is suitable for the situation of high warehouse, small goods, manual access, and large storage capacity. The floor support shelves have a complete range of varieties and specifications, and the attic floor has flat plates, checkered plates, steel chrome plates, and wooden boards. Generally, light trolleys or pallet traction trolleys are used in the attic.

1. The loft platform is a full-group structure with special steel slabs

2. It can be flexibly designed into two or more layers to make full use of space

3. The loft platform is suitable for storing small batches of multiple varieties of goods

The load-bearing capacity of the attic platform:

 Load-bearing is very important to the shelf. Of course, the loft platform is no exception. The loft platform is calculated as the square, and the designed load-bearing range is 300kg-1500kg/square. Cold rolled steel plates are mostly used. It has strong load-bearing capacity and good integrity. , Good bearing uniformity, high precision, smooth surface, easy to lock and other advantages. There are many types to choose from, and it is easy to match the lighting device, and it is more convenient to access and manage.

The column of the attic platform is the double-hung column with the best bearing capacity, and the beam is also the double-C beam with the best force. The other shelves are only composed of columns and beams, and laminates. In addition to the double-hung column, the attic platform has a main beam. , Secondary beams, support beams and other parts, the spacing of the support beams is distributed according to the force on the floor, this design is to achieve a better force effect.

The loft platform is used for the storage of various goods, pallet goods, boxed goods, machinery, packaging materials, etc. It has a wide range of use and can be used in factory warehouses, factory workshops, and some stores. It can be designed flexibly according to actual site needs. , The surface is treated with electrostatic spraying, and the appearance is beautiful.

 　The guardrail of the attic platform:

 One is made of conventional square pipes, with two parallel directions, suitable for storage of large goods; the other is made of round pipes, with three vertical directions, suitable for storage of small goods.

 The design and production of each shelf must meet its own load-bearing capacity, and the loft platform is no exception!
